Technical Data

Flow rate: 2400L/H

Max discharge pressure: 28MPa

Regulating ratio: 10:1, Steady precision: ±1%

Suction lift: 1.5m

Medium temperature: -10℃-100℃

Max ambient temperature: 40℃, highest elevation: 1000m

1. Control mode

1. Power supply: 380V/220V-50Hz/60Hz/three phase/single phase

2. Variable frequency controller, accept external control signal, adjust stroke speed.

3. Input signal: 4-20mA analog signal

1. Motor controller, control three-phase motor with mode “run/stop”, adjust output flowMain application

Petrochemical industry, chemical, power, metallurgy and other fields, especially in the field of high precision, high pressure, high temperature outstanding performance.

Main components material of hydraulic end

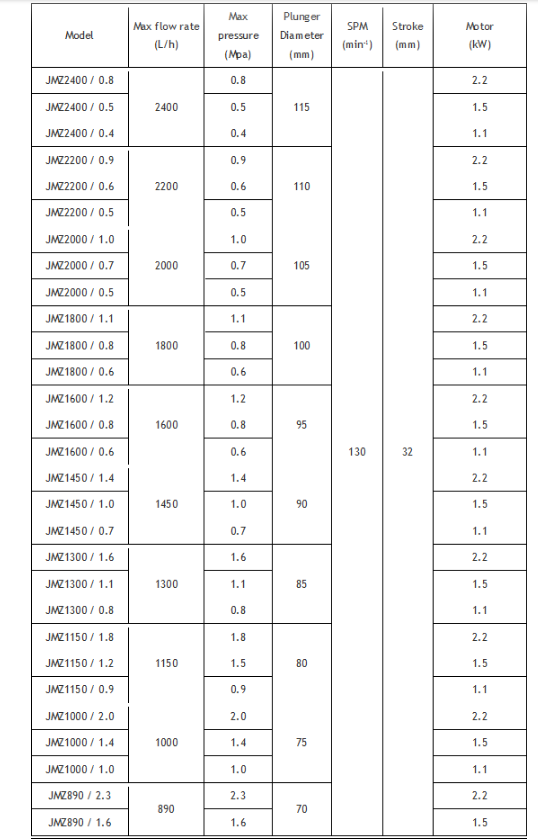

Flow rate/Pressure
